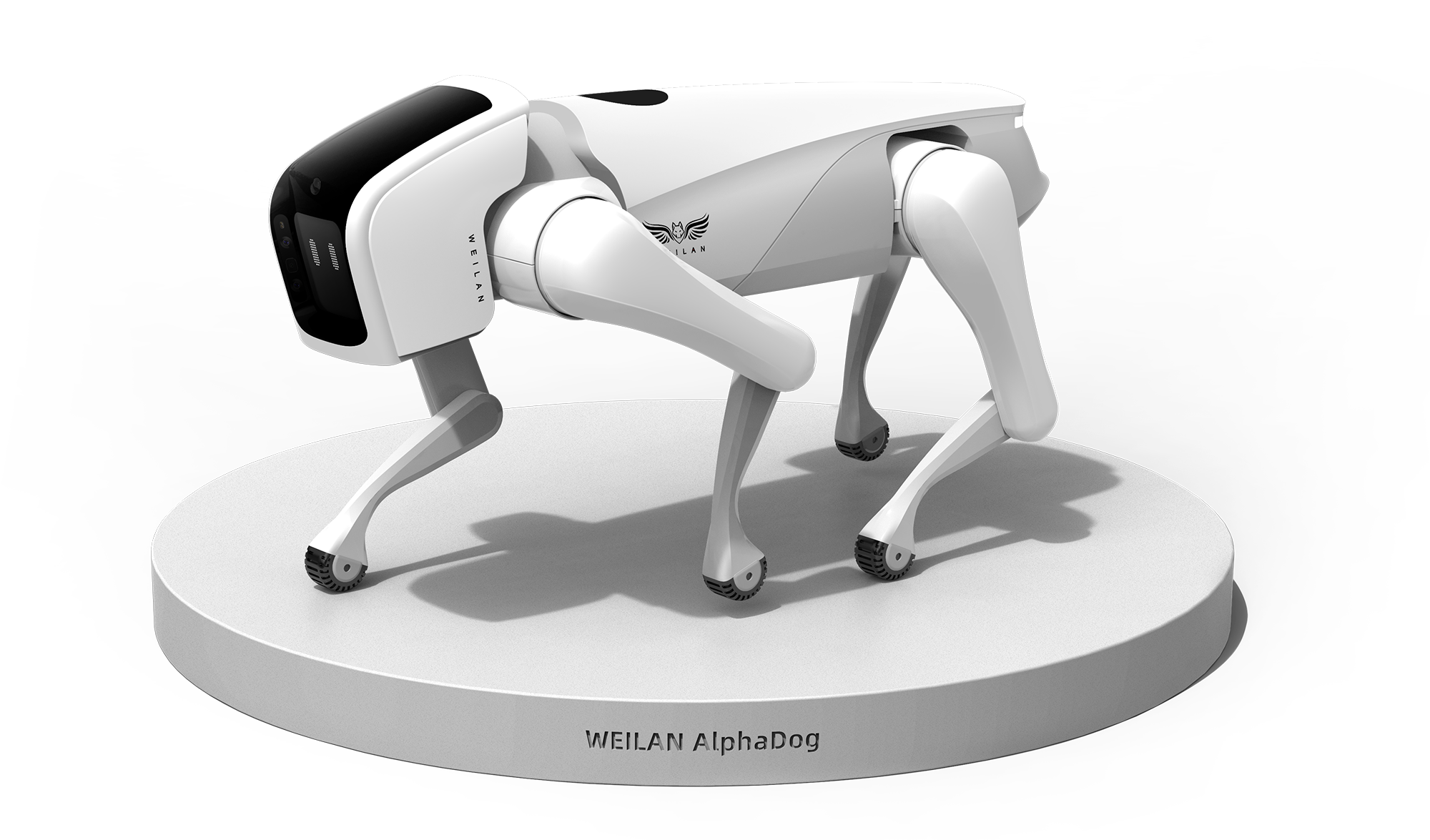

ALPHADOG C-SERIES
AlphaDog is continuously being upgraded, please follow our website refreshing.
Accelerating Amazing AI Innovation
The fifth generation AlphaDog C-series will bring you a pleasant experience who loves technology and innovation. It will accompany you to explore the cutting-edge innovation and infinite possibilities in the era of artificial intelligence.More Scenarios More Innovations
The fifth generation AlphaDog C-series is the best choice for innovators to experience cutting-edge AI technologies and explore innovative applications of AI.

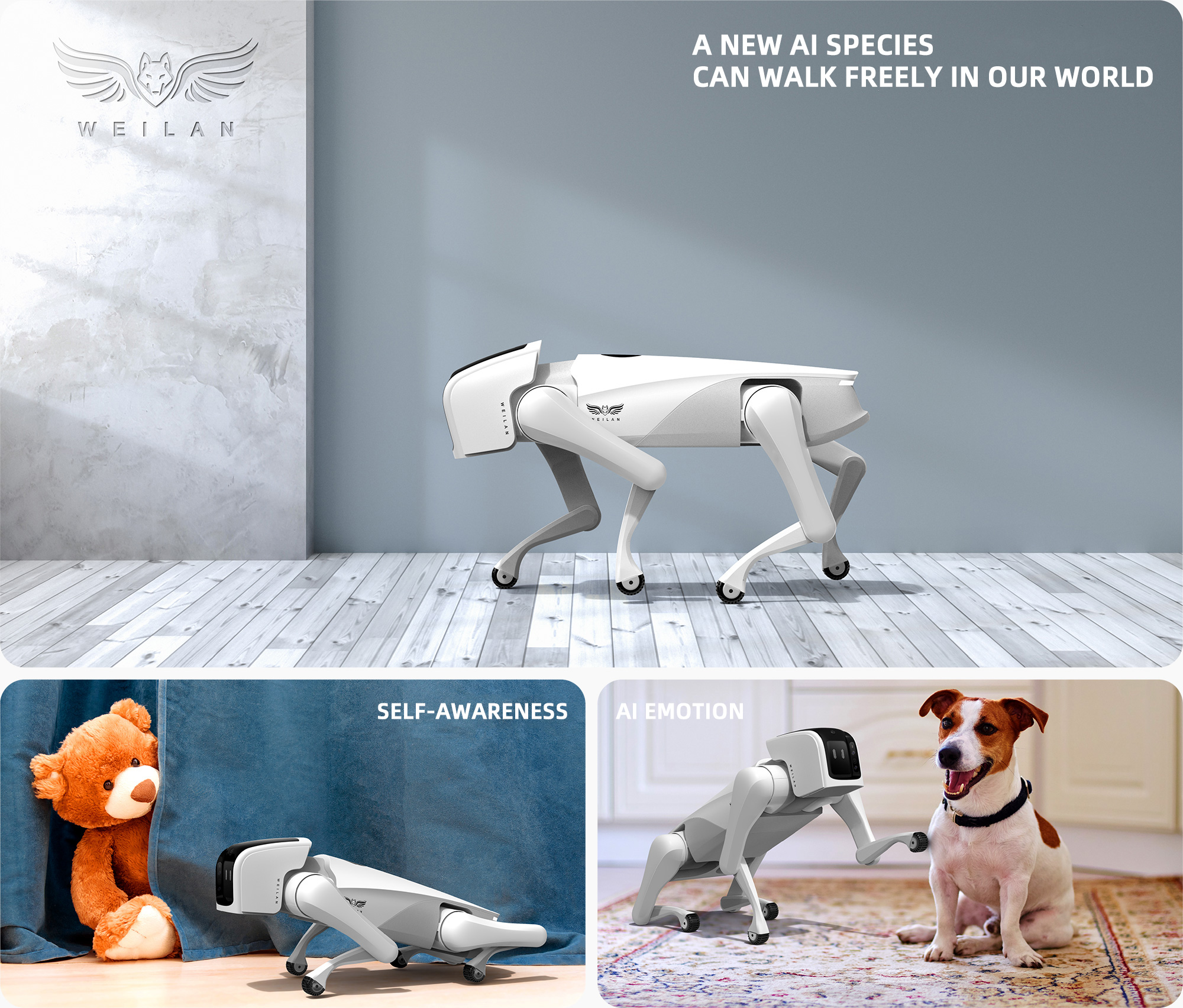

A New Souled AI Species
The fifth generation AlphaDog C-series adopts powerful AI self-awareness and self-learning technology which create a loyal and cute AI pet.
AlphaDog Can Be Operated without Remote Control
The fifth generation AlphaDog C-series has intelligent cruise and force-controlled traction functions. You can choose to walk the dog with or without a leash, and experience the pleasure of walking a real dog.
Not Only Indoors, But Also Nimble Outdoors
The heuristic hybrid motion control technology allows the AlphaDog to move freely both indoors and outdoors, and unleashes the ability to walk smoothly. Artificial intelligence can finally "walk" with you.
Stay Quiet, Run Wild
AlphaDog is interesting and obedient, can intelligently adapt multi-scene. Not only can play happily, but can also become well-behaved instantly.
Be the First Generation of Artificial Intelligence Era
After 2020, we will become the first generation in the era of artificial intelligence. AlphaDog supports all innovators to develop amazing AI innovative applications and create a perfect integration of future technology and a better life.
The Interesting AlphaDog Grows with You
AlphaDog is equipped with different models of speech, vision and communication modules. Based on mature speech recognition and visual recognition technology, coupled with the Internet and the IOT, you can turn AlphaDog into a smart and knowledgeable know-it-all.
Play and Rest Autonomously
It obeys the commands, and not need to be worried about when stocking. AlphaDog supports voice and visual interaction. The thinking ability based on deep reinforcement learning technology allows AlphaDog to obey commands and act autonomously. It can adapt freely no matter in office or home.Open Ecosystem Accelerates Innovation
AlphaDog supports a wealth of software, hardware and open source ecosystems to help you explore subversive innovations in the era of artificial intelligence.
Persistence Is The Key to Success
After nearly ten years of accumulation and development, a rich ecosystem has been formed in the field of AI. From the chip to the operating system, from the cloud platform to the algorithm framework, it is the strong support for you to create the future. AlphaDog adopts an open architecture and supports a large number of software, hardware and open source ecosystems.

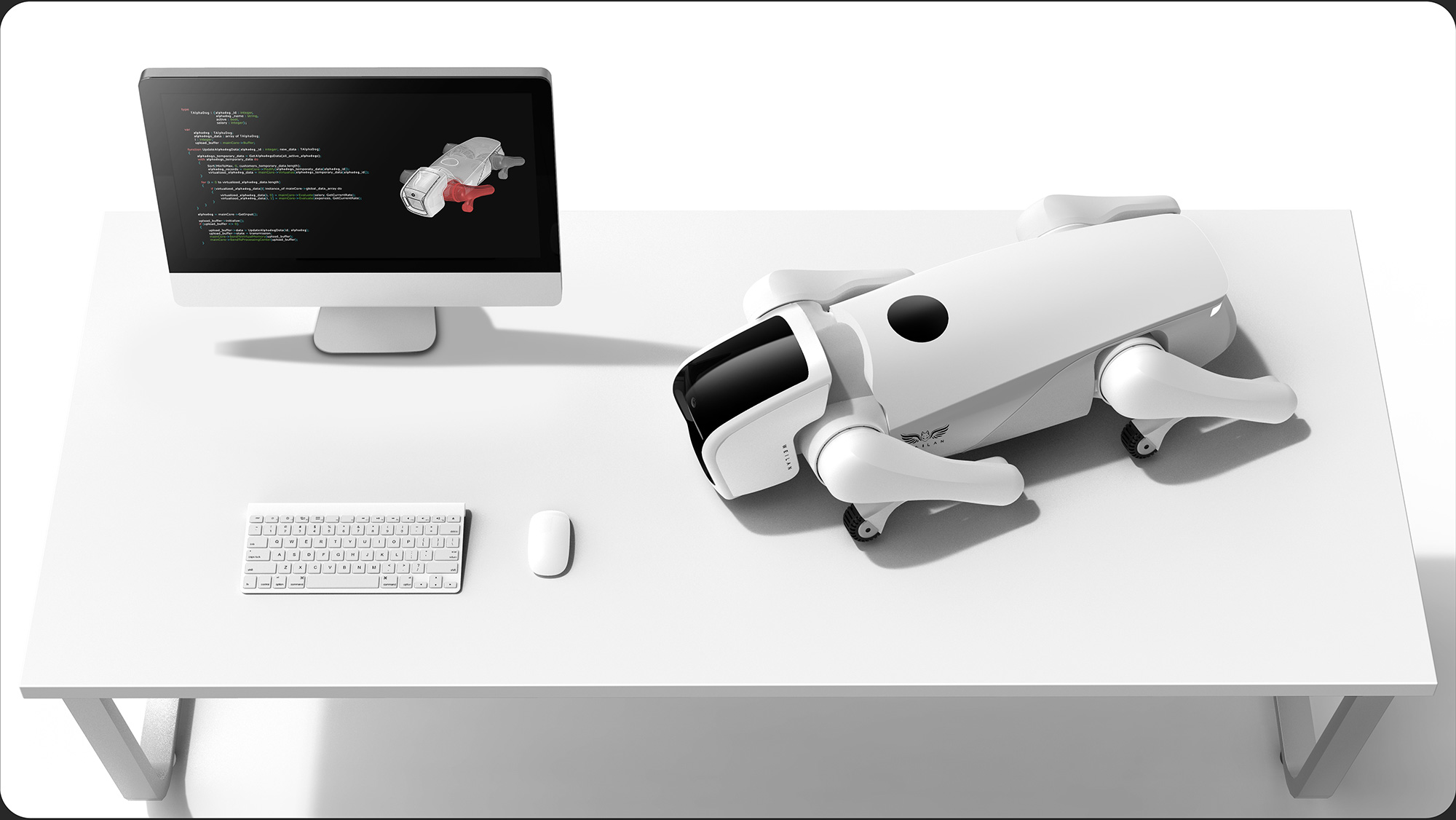

Secondary Development in The Way You Are Familiar with
AlphaDog supports connecting a monitor, keyboard and mouse, and even acts as a computer host. The internal operating system is widely used Linux, so you can use your familiar programming languages and software tools for secondary development. You can also develop on your own computer, and then copy it to the AlphaDog to run. Developing AI applications is as easy as developing normal software.WeiLan will successively launch 100+ AI application examples open source code to help you innovate.
Support Various Control Methods

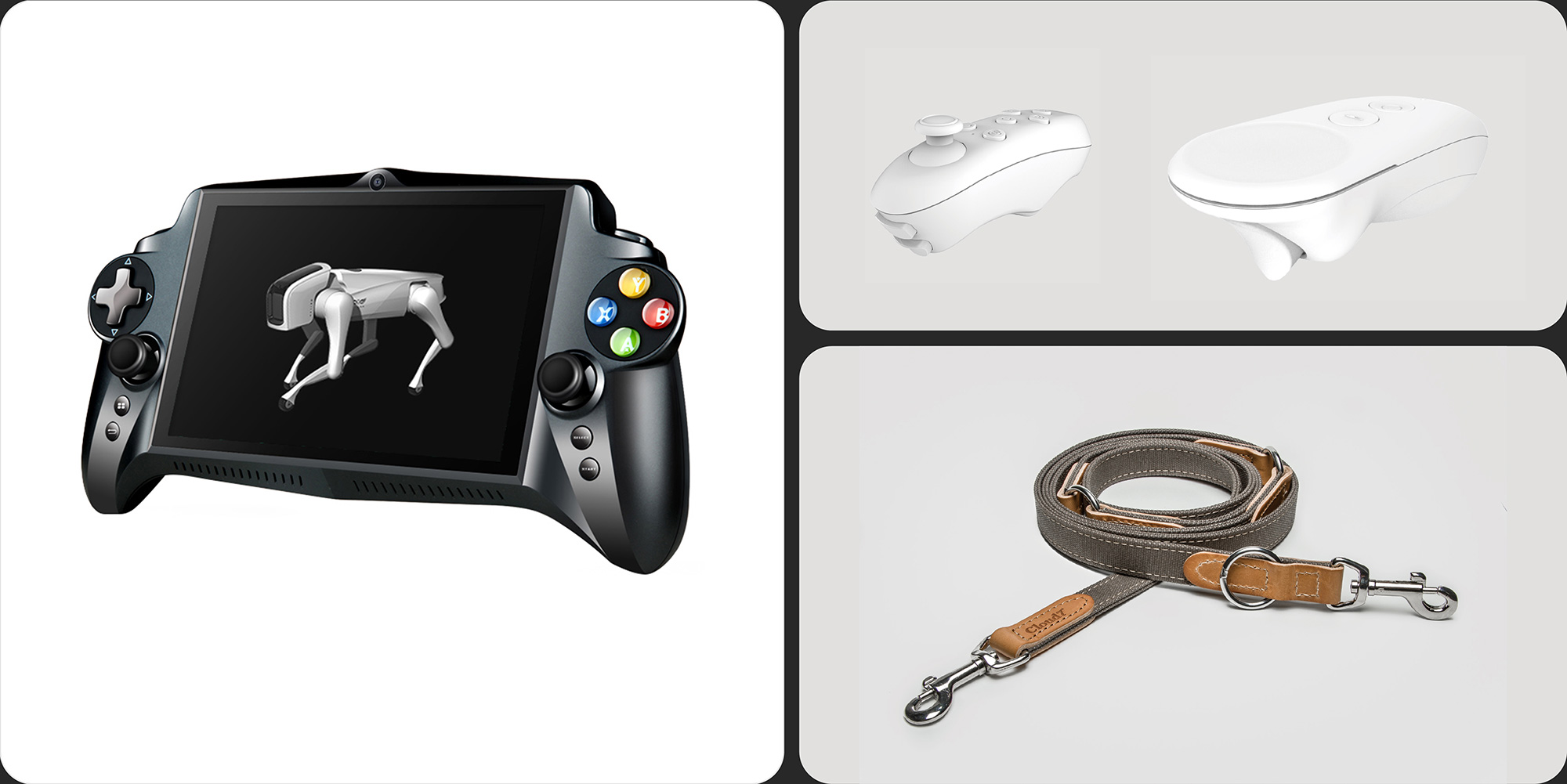

AlphaDog can be easily operated and used without a remote control, and it also supports a variety of remote control methods for you to deal with more innovative scenarios. Not only supports high-performance dedicated tablet remote control, but also supports miniature Bluetooth remote control that can be held in your palm. AlphaDog's force control technology even allows you to happily walk Alphadog on a regular leash.

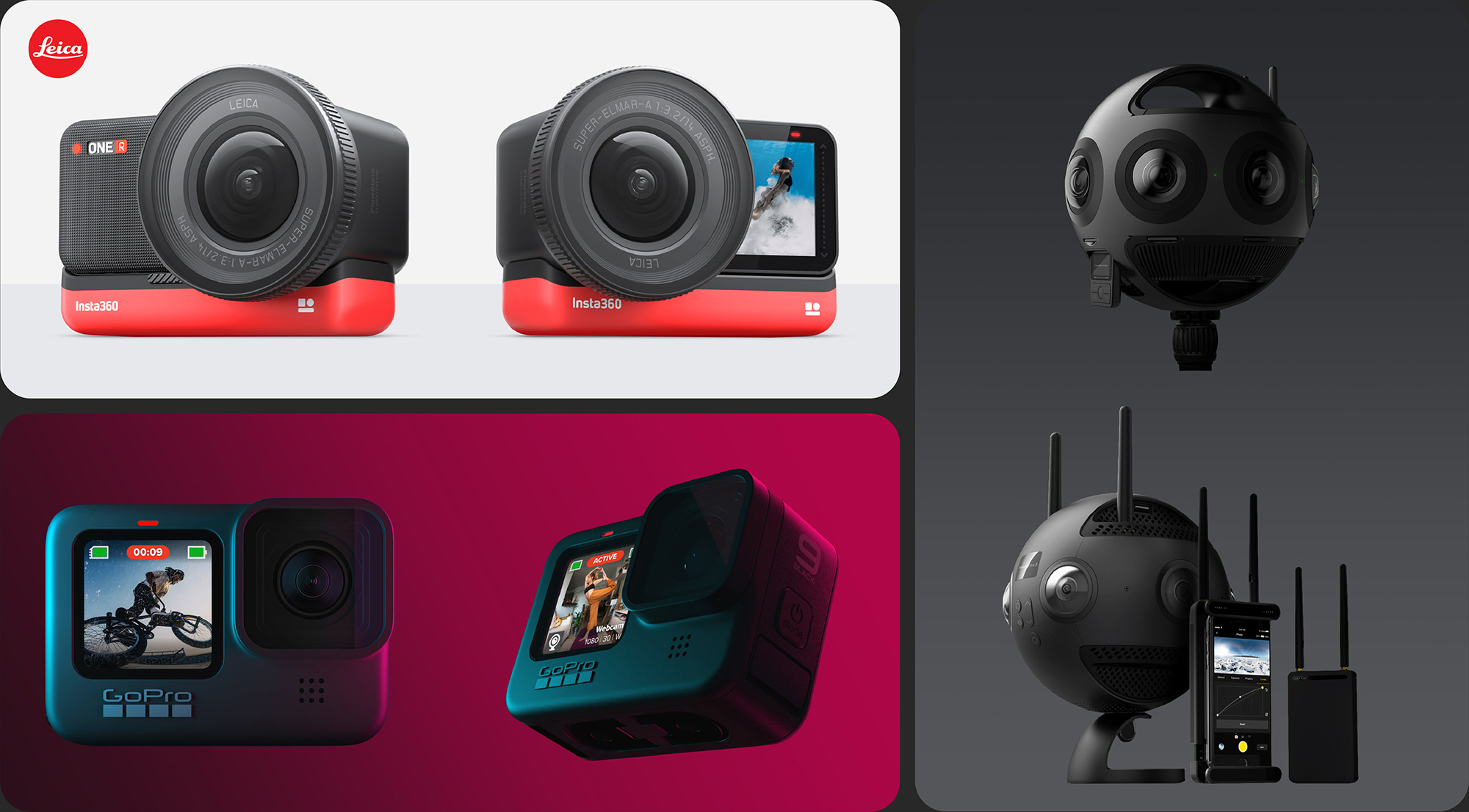

Support Anti-shake Action Camera and 360-degree Panoramic Camera
AlphaDog has a unique ground angle of view. For users who like to shoot high-quality photos and videos, supporting professional anti-shake action cameras will add more possibilities and fun. The advanced Insta360® Leica® lens anti-shake action camera and 360-degree panoramic camera will help you create more professional image works and AR/VR applications.AlphaDog + INSTA360® Action Camera
Based on Insta360®'s powerful anti-shake motion camera technology, panoramic camera technology, and advanced technologies such as depth tracking 2.0 and AI creative library, AlphaDog can also become a photography master.Seeing The World from AlphaDog's Perspective
Panoramic photography, passersby removed. Adding a powerful Insta360® Leica® lens anti-shake action camera and 360-degree panoramic camera will help you create more professional video works and AR/VR applications.Seeing The World from AlphaDog's Perspective
Panoramic photography, starry sky time-lapse.Adding a powerful Insta360® Leica® lens anti-shake action camera and 360-degree panoramic camera will help you create more professional video works and AR/VR applications.

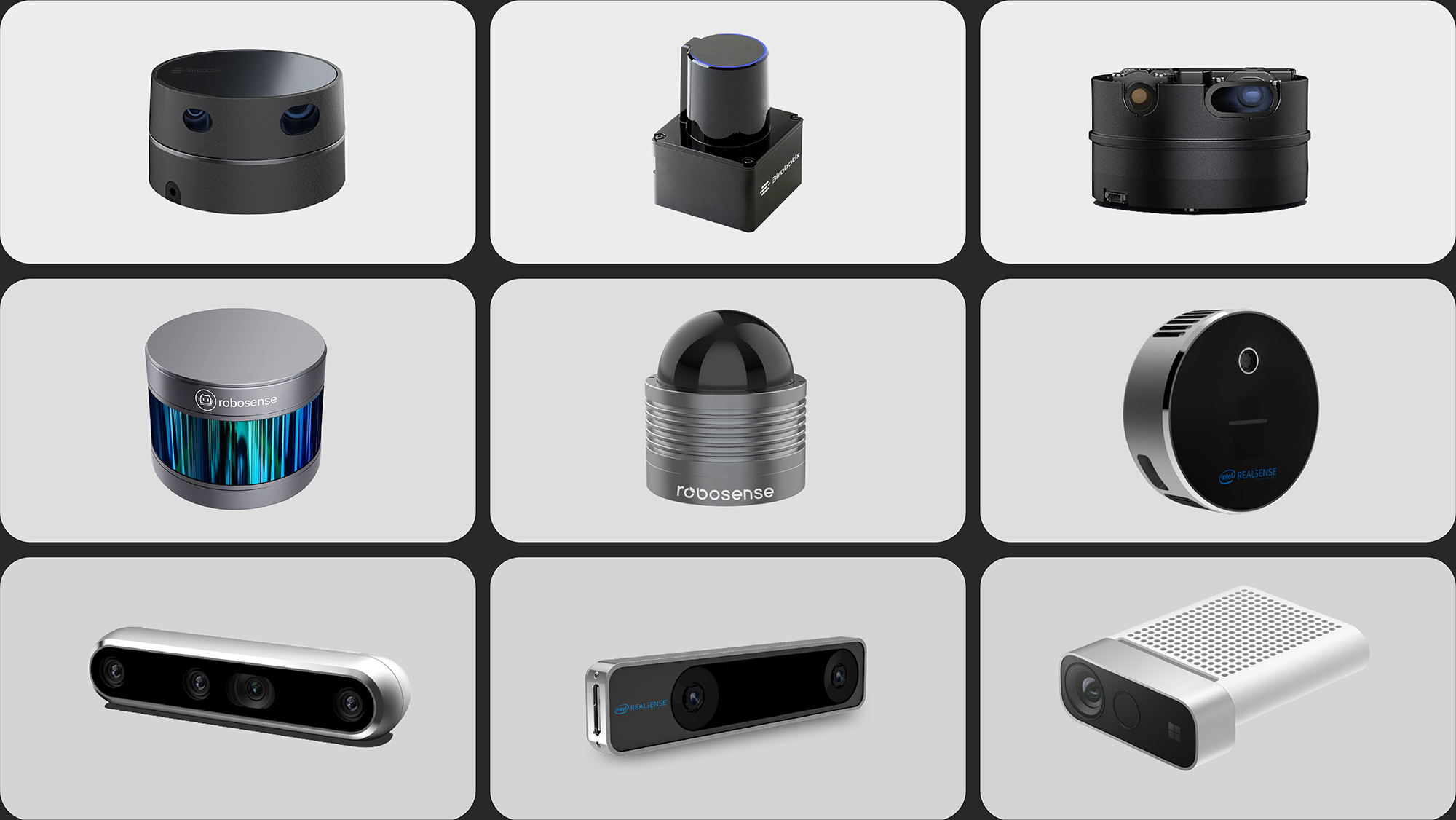

Supports Lidar and Machine Vision
Lidar and machine vision are important sensors for robots to perceive the outside world. AlphaDog supports a variety of mainstream Lidar and machine vision sensors. Help you quickly build innovative applications of AI such as object recognition, automatic driving, SLAM, 3D reconstruction, 3D street view, etc., and accelerate the innovation process.
Supports IoT and Sensors

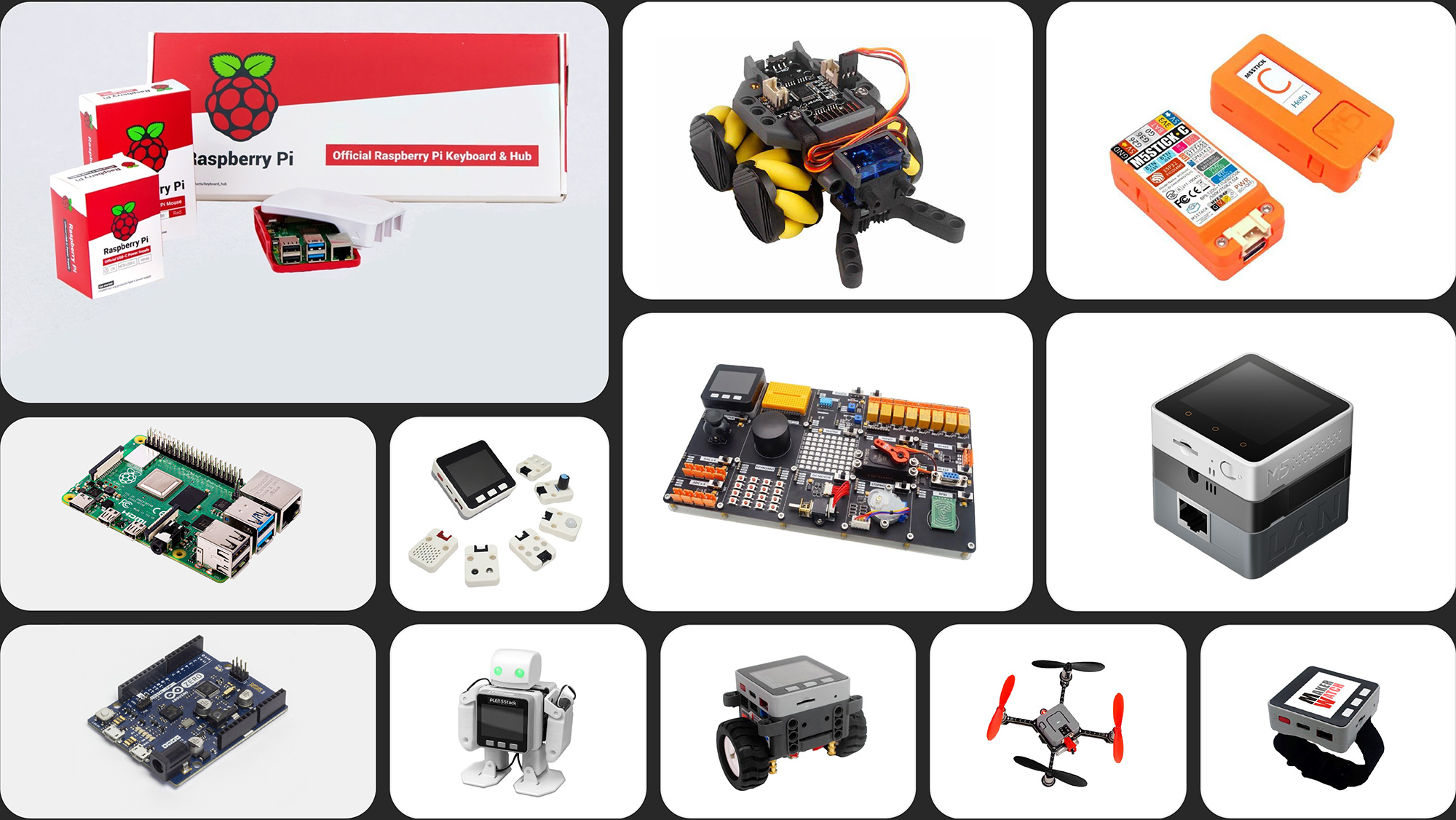

AlphaDog adopts an open architecture and supports IoT and sensor ecosystems such as Raspberry Pi, Arduino, and M5Stack. You can turn AlphaDog into a control center or edge computing node for IoT systems and digital twin applications such as smart home, smart office, smart industry, and smart agriculture, and quickly build innovative AIoT applications.
Cooperate with The Mars Exploration Robot Motor Manufacturer Maxon to Jointly Develop High-performance Actuators for Robot Dogs
The actuator is one of the most important core components of the robot, and it is the source of the robot dog's movement ability. Therefore, WeiLan cooperate with maxon, the world's leading manufacturer in Swiss of high-precision drive systems, to jointly develop high-performance actuators for robotic dogs. The "Perseverance" probe robot and the first Mars helicopter that just arrived on Mars are equipped with maxon drive systems. Currently, more than 100 maxon motors are in service on the red Mars.
Self-awareness Self-learning Multi-CPU distributed computing
Not only multi-core and AI acceleration, any model of AlphaDog has at least 15 CPUs, with an industrial-grade communication system and a high-speed motion control system. Distributed computing and deep reinforcement learning technology make each AlphaDog have its own unique intelligence.
Strong Athletic Ability
In order to better support various application innovations in the real environment, in addition to the independent research and development of high-speed joint force control, dynamic balance control and model prediction-based motion control technologies similar to those of global excellent quadruped robots, WeiLan also created two original key core technologies: heuristic hybrid motion control that enables AlphaDog to adapt to various terrains at a frequency of 40,000 times per second, CV switching motion gait, mode and trajectory, and the Multi-objective enhanced motion control technology in Multi-scenes to complete various types task during motion. . What's even better is that the athletic ability of AlphaDog has been continuously improved and supports online upgrades, which is worth your expectation and you are deserved to have it.
Artificial Intelligence and Autonomous Driving Technology
AlphaDog supports powerful deep learning algorithms and mature AI technologies such as person, object, scene recognition and voice interaction. The high-end version of AlphaDog is a low-speed automatic driving device that supports advanced automatic driving technologies such as 3D map construction, automatic cruise positioning, terrain 3D structure recognition and dynamic obstacle recognition.
Aerospace Materials and Ultra-Lightweight Design
All materials used to make the AlphaDog are strictly screened, including every single screw. The core mechanical structure is made of aerospace-grade industrial aluminum and ultra-lightweight design, which ensures the mechanical strength and makes the AlphaDog move dexterously.
Carbon Fiber Materials and Automotive Industry-grade Power Transmissions
Most of the sports cars use carbon fiber materials for structural reinforcement and lightweight body, and the key lightweight components of the AlphaDog also use carbon fiber materials. At the same time, Weilan Technology teamed up with Gates, a global leader in power transmission and fluid power, to design a high-strength industrial-grade power transmission for the AlphaDog. Gates has accumulated over a hundred years and has been proven in the automotive industry, allowing AlphaDog to fully unleash its sports potential.
Wonderful Application, Innovated by You
AlphaDog is a powerful platform for exploring the innovation of AI applications. Less than a month after the first generation of AlphaDog was launched, Weilan Technology has received more than 100 industry customers' needs for industry application innovation. Now, the fifth-generation C-series AlphaDog, which bring together the latest technologies of Weilan Technology, will better support you to explore infinite possibilities.
Innovative Applications in Discovery
Children's education, family companionship, elderly care, express delivery, STEAM education
Innovative Applications in Discovery
Emergency rescue, fire rescue, field tracking, disaster rescue, security patrol and assistance
Innovative Applications in Discovery

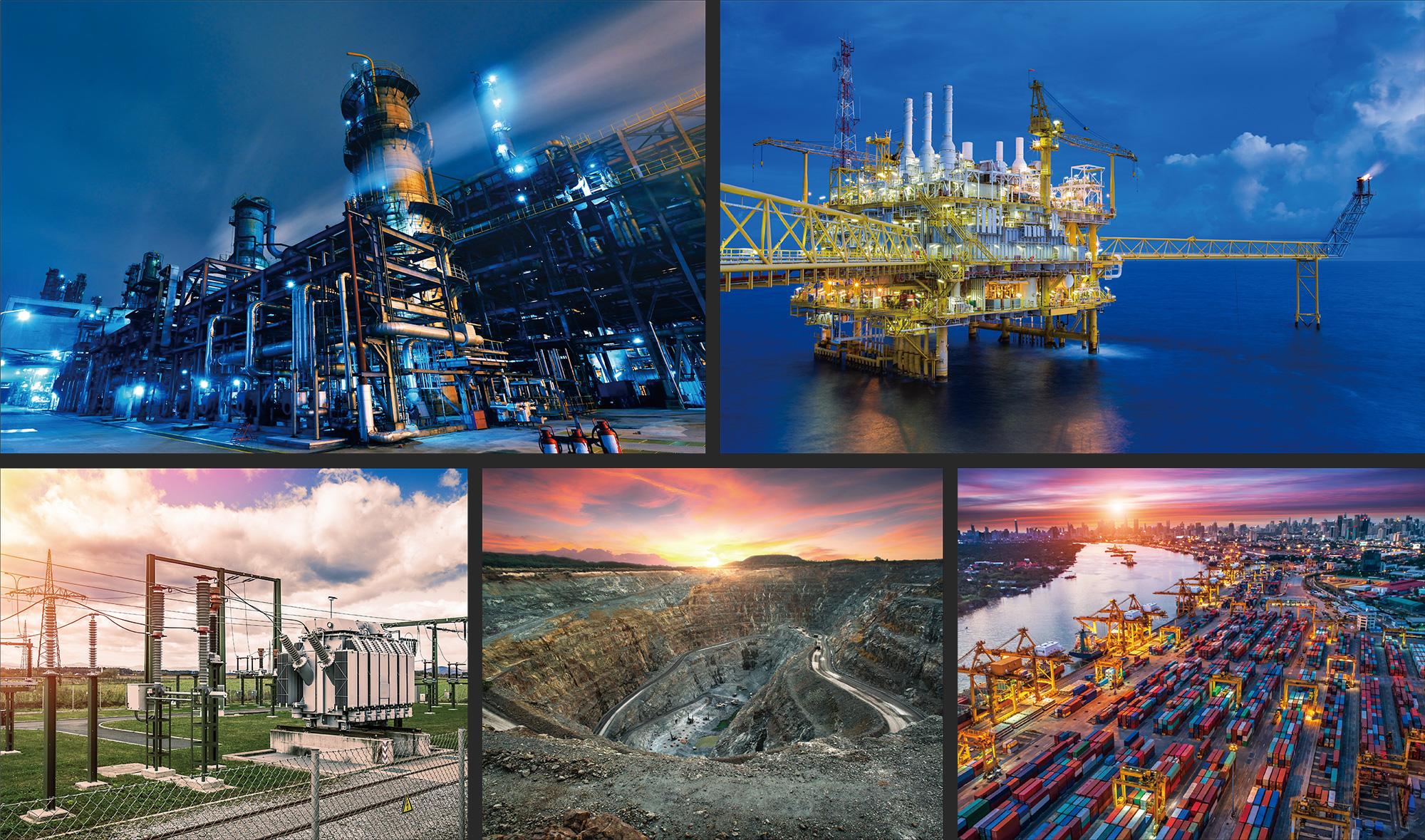

Energy, power and petrochemical facilities patrol inspection.
Innovative Applications in Discovery
Energy, power and petrochemical facilities patrol and Inspection. You can explore more patrol inspections and intelligent services for industrial and commercial scenarios
Innovative Applications in Discovery

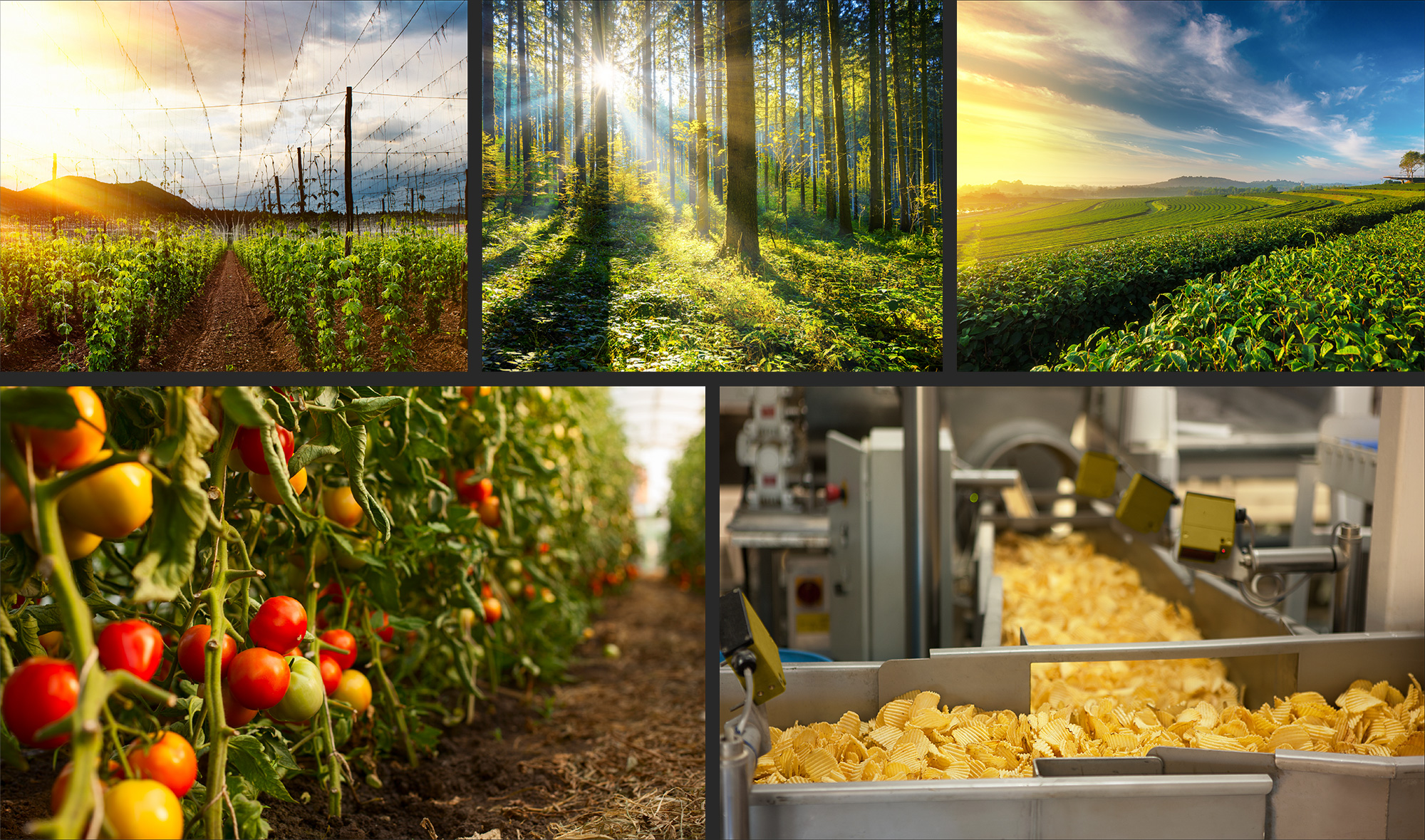

Crop inspection, ecological resource protection, tea picking, fruit picking, sterile inspectionAlphaDog C-series
Mobility
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| Speed | Up to 1.5 m/s | Up to 1.5 m/s |
| Max. Safe Speed | 3.0m/s | 3.0m/s |
| Gradeability | Max.20° | Max.20° |
| Dynamic Balancing | Yes | Yes |
| Crash Protection | Yes | Yes |
| Push Recovery | Yes | Yes |
| Fall Recovery | Yes | Yes |
| Move |
Forward Backward Turn Left Turn Right Lateral Omnidirectional Rotation |
Forward Backward Turn Left Turn Right Lateral Omnidirectional Rotation |
| Gait |
Balance-Standing Walking Trotting Free-Trotting Trot-Walking Trot-Running Static-Walking Pacing Bounding Galloping Pronking Etc. |
Balance-Standing Walking Trotting Free-Trotting Trot-Walking Trot-Running Static-Walking Pacing Bounding Galloping Pronking Etc. |
| Payload Capacity | Up to 3 kg | Up to 3 kg |
Perception
Computing
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| CPU | ARM 64 bit | ARM 64 bit |
| Hard Drive | 32 GB | 32 GB |
| Ports | HDMI, USB, WIFI | HDMI, USB, WIFI |
| Operating System | Linux + ROS | Linux + ROS |
Range of Motion
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| Roll of Body | ±30° | ±30° |
| Pitch of Body | ±30° | ±30° |
| Yaw of Body | ±60° | ±60° |
| Abduction/Adduction | ±30° | ±30° |
| Thigh Rotation | -185°~+115° | -185°~+115° |
| Calf Rotation | 0°~+150° | 0°~+150° |
Acurator and Sensor
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| High Performance Acurator | Yes | Yes |
| Visual Screen Eyes | Yes | Yes |
| Stereo Speakers | Yes | Yes |
| Microphone Array | Yes | Yes |
| Fisheye Vision Camera | Yes | Yes |
| Depth Vision Camera | No | Yes |
Mechanical and Materials
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| Mechanical Parts | Aviation aluminum + carbon fiber + composite material | Aviation aluminum + carbon fiber + composite material |
| Body Shell | Flame Retardant PC | Flame Retardant PC |
| Power Transmission System | Semi-direct drive motor + industrial timing belt | Semi-direct drive motor + industrial timing belt |
| Key Fasteners | Ultra high strength SCM435 alloy steel | Ultra high strength SCM435 alloy steel |
Duration and Battery
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| Average | Up to 5.7h | Up to 5.7h |
| Continuous Walking | Up to 3.3h | Up to 3.3h |
| Standing | Up to 8h | Up to 8h |
| Standby Mode | Up to 18h | Up to 18h |
| Battery | 23Ah Lithium Battery | 23Ah Lithium Battery |
Size and Weight
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| Size (Standing Pose) | 76 cm x 40 cm x 45 cm | 76 cm x 40 cm x 45 cm |
| Weight | 24Kg | 24.3Kg |
Accessories
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| Charger | Yes | Yes |
| Control mode | Bluetooth remote control + Dog leash | Visual remote control + Bluetooth remote control +Dog Leash |
| Remote Emergency Stop Switch | Yes | Yes |
Environmental Requirements
| C500 Standard developer version | C501 Ultimate developer version | |
|---|---|---|
| Operating Ambient Temperature | 0°C ～ 35°C | 0°C ～ 35°C |
| Nonoperating Temperature | 0°C ～ 45°C | 0°C ～ 45°C |
Remark：
|
1.Weilan Technology will continue to optimize the product. The appearance and specifications of the robot dog you actually receive may be different from the one you order, but Weilan promises that its specifications will not be lower than the quality standard manual.
|
|---|
